Class extension model
The extensions lets you extend existing artifacts in a new model. Extensions are easier to maintain, but the amount of extension that can be done during customization is limited. There are rich ways to extend the metadata. For example, you can add new fields to a table. This article describes how X++ code can be extended, so that you can add methods and state to artifacts that are defined in other models without recompiling those models. A similar code extension mechanism already exists for X++ and is modeled after the corresponding feature in C#. Under this mechanism, a class can be designated as an extension class through a naming convention and by hosting public static methods. In the existing feature, the type of the first argument that is passed to the extension method is the type to extend. What this article describes is the next step in that direction, which offers a more capable and natural extension story. In object-oriented programming, the term extend has a well-defined meaning. If we say, "class B extends class A," we mean that B inherits from A, that A is B's parent class, and the usual object-oriented rules are implied. In fact, this term is even used in the X++ syntax that is used in class declarations to express this relationship. At the same time, we use the term extension to talk about metadata that has contributions from several models. To avoid further overloading the term extend, we will instead use the term class augmentation to designate the relationship between a class A in a base model and a class B in a model that depends on it, where B provides additional functionality to class A in the context of that model. Nevertheless, we will also continue to use the term extension class, because it's prevalent
The effective class concept

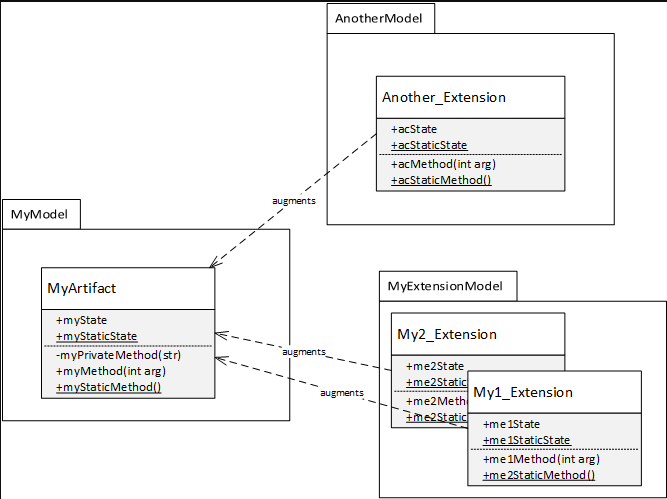

It's useful to have a term for a class that consists of the public members of the augmented artifact and all the public members of all the class extensions that augment that artifact. This class is called the effective class in a given model. The following illustration shows an artifact, MyArtifact, that is defined in a base model, MyModel, and two dependent models that have extension classes for MyArtifact.
Extension class declarations
Extension classes are final classes that are adorned with the ExtensionOf attribute and that also have a name that has the _Extension suffix. (This restriction on the naming might be removed later.) The name of the extension class is otherwise unimportant. The class augments the artifact that is specified in the parameter of the ExtensionOf attribute, as shown in the following example.
Because the classes are instantiated by the runtime system, it's not meaningful to derive from the extension class. Therefore, the extension class must be marked as final. The extension class MyClass_Extension does not extend the designated class (MyClass). Therefore, you cannot override methods from MyClass in MyClass_Extension. The classStr compile-time function must be used to designate the augmented class, and it serves two purposes:
It produces a compilation error if the MyClass class doesn't exist.
The compile-time function that is used tells the compiler what kind of artifact is augmented. Artifact names by themselves don't uniquely identify a given artifact to augment. For example, forms can have the same names as tables, classes, and enums.
Extension class inheritance
Any class that inherits from an augmented class also inherits the effective class. In other words, the classes that inherit from a class that has extensions inherit the methods that are defined in the extension classes.
Constructors
Instance constructors
The instance constructor is the method that is named new. Constructors are useful for initializing the state of the extension objects. The instance constructor that is defined in an extension class can't have parameters. Instances of the extension classes are created, and the runtime system calls their constructors as required by the usage scenario. These constructors are never explicitly called by your code. It's guaranteed that the constructor that is provided in an extension class will be called once before any instance method or the instance state on the extension class is accessed. However, if no such references are made, the constructor isn't called.
Static constructors
Static constructors are parameter-less static methods that are named type new. Static constructors can be defined on extension classes. It's guaranteed that the runtime system will call the constructor exactly once before the first reference to the extension type. You can't assume any particular order of invocation for static construction among a set of extensions. This means that you should be careful about referencing static data from other classes in static constructors.
Methods
Instance methods

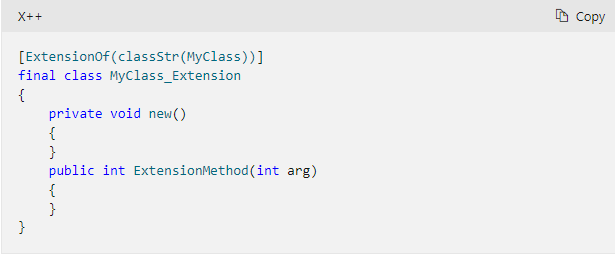

The following example defines an extension method named ExtensionMethod in a class that augments MyClass.
The public instance method (ExtensionMethod) is defined in the extension class. Therefore, it's available just as if it were defined in MyClass in the context of the model where the extension class is defined. The following example shows how to call the method in the model.
Static methods
Methods that are defined as public and static in the extension class are available as static methods on the artifact that is augmented.
The following example shows how to call the method in the model.
State
Instance state

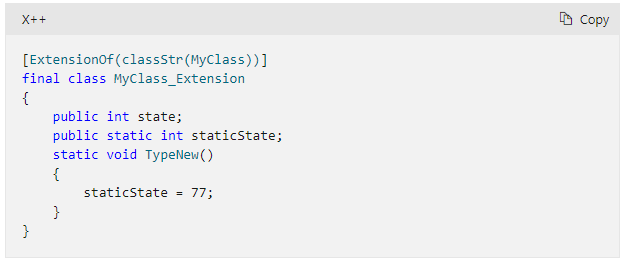

Instance state, which is state that pertains to a particular instance of an artifact, can be specified on extension classes. The following example defines a state that is named state.
The following example shows how to use state in your code.
Static state
Static state applies to the type, not instances of the type. The following example defines a static member called staticState in the Extension class augmenting the MyClass class.
